Apply to open circuit
Size: 15~34
Max Service pressure(bar): 180~216

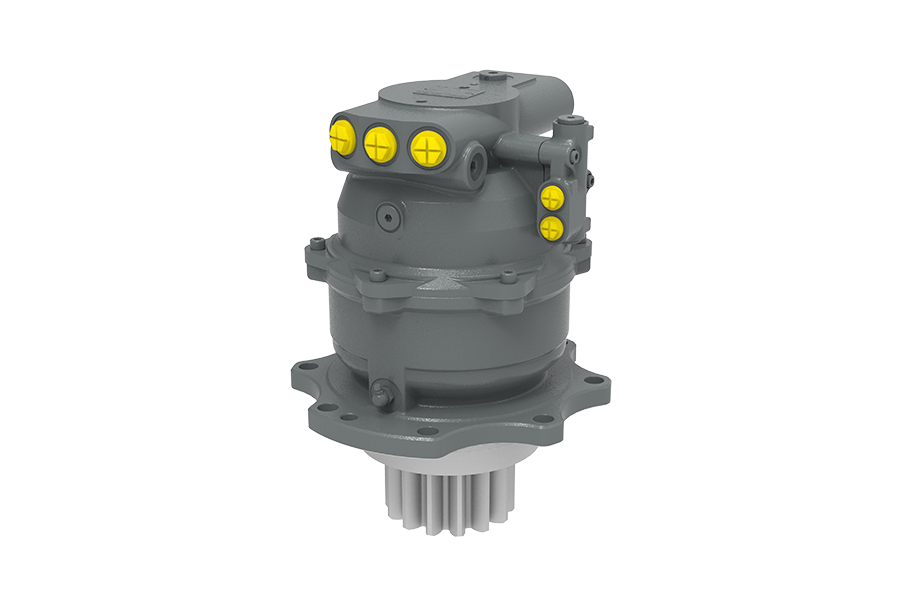

·HM5F series swashplate axial piston motor is fixed displacement motor, with wide application for open circuit.
·The design provides for an extraordinarily compact motor whereby the motor's rotating group, integral mechanical brake element and the attached valve options are neatly packaged together. Assembling the mechanical brake around the rotating group means that there is no configurational difference in motor installation which allows the optional provision of a brake.
| Motor | Feature | 15 | 18 | 23 | 34 | |
| Normal displacement (cc/rev) | 14.5 | 18.1 | 23.6 | 30.5 | ||
| Direction of rotation | Clockwise, Counter clockwise | |||||
| Max rotation speed (rpm) | 2150 | 2150 | 1000 | 1900 | ||
| Peak pressure(bar) | 216 | 216 | 180 | 216 | ||
| Torque | Rated output torque (N·m) | 49.5 | 62 | 67.5 | 105 | |
| Max. brake torque (N·m) | 68 | 68 | 68 | 116 | ||
| Barking release pressure | Min (bar) | 25 | 25 | 25 | 29 | |
| Max (bar) | 49 | 49 | 49 | 49 | ||
| Casting pressure | Rated (bar) | 2 | 2 | 2 | 2 | |
| Max (bar) | 3 | 3 | 3 | 3 | ||
| Reducer | Reducer type | RGSM11A | RGSM14A | RGSM06A | RGSS25A | |
| Reduction ratio | 21.5 | 21.5 | 10 | 23.2 | ||
| Weight (Kg) (Containing Reduction gear) | 33 | 41 | 26 | 60 | ||
| Oil viscosity (mm2/s) | 7~1600, Best range：12~80 | |||||
| Oil Temperature (℃ ) | -40~100, Best range：60~85 | |||||
| Oil Cleanliness | ISO 4406 20/18/15 | |||||
