Specifications：140 cc/rev
Rated pressure：350 bar
Peak pressure：400 bar

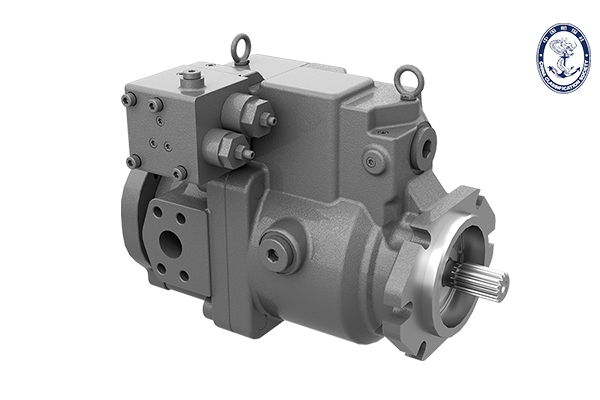

Variable pump in swash-plate design for open circuit.
High continuous pressure.
Exceptional self-priming capability.
Available with American (SAE) and Japanese (JIS) mounting flanges and shafts.
Excellent reliability and long life.
High power to weight ratio.
Variety of control options.
Optional through drive.
Quick control response.
Low pressure pulsation and low noise.
Developed for engineering, mobile vehicles, Industrial and other industrial application.
| Size | 140 | |
| Displacement (cc/rev ) | 140 | |
| Pressure | Rated pressure (bar） | 350 |
| Peak pressure (bar） | 400 | |
| Rotation speed | Max for self-priming (rpm) | 2150 |
| Max (rpm) | 2500 | |
| Weight (Kg) | 65 | |
| Quantity of oil to fill pump case (L) | 1.4 | |
| Temperature Range (℃ ) | -20~95 | |
| Viscosity Range (mm2/s) | 10-1000 (The best use of viscosity range 16~36 mm2/s) | |
